Nodes List

The Nodes tab shows every device your radio has heard on the mesh. Tap any node for details.

Node Status

Element	Meaning
	Short Name & Long Name — each node has a short name (up to 4 bytes) shown in the colored circle and a long name displayed next to it. The circle color is derived from the node number. The short name can be an emoji or initials.
	Online — the node has been heard recently and is considered online.
	Idle / Sleeping — the node has not been heard from recently and may be asleep or out of range.
	Hops Away — the number of intermediate nodes relaying messages between you and this node. No hops means direct communication.

Encryption

Icon	Meaning
	Shared Key — direct messages are using the shared key for the channel.
	Public Key Encryption — direct messages use public key infrastructure. Requires firmware 2.5+.
	Public Key Mismatch — public key does not match the previously recorded key. Verify the contact out-of-band.

Device Roles

Each node is configured with a role that determines how it behaves on the mesh. Roles are shown in the node detail view.

Icon	Role	Description
	Client	Standard end-user device. Sends and receives messages, shares position.
	Client Mute	Like Client but does not forward packets from other devices. Reduces mesh traffic near congested areas.
	Client Hidden	Only broadcasts as needed for stealth or power savings.
	Client Base	Rooftop node that distributes messages widely from nearby Client Mute nodes.
	Router	Dedicated infrastructure node — prioritises packet forwarding. Not for rooftops or mobile nodes.
	Router Late	Like Router but rebroadcasts once after all other nodes. Better suited to rooftop deployments.
	Tracker	Broadcasts GPS position packets as priority. Optimised for frequent location reporting.
	Sensor	Broadcasts telemetry packets as priority. Optimised for sensor data.
	TAK	Optimised for ATAK system communication. Reduces routine broadcasts.
	TAK Tracker	Enables automatic TAK PLI broadcasts. Reduces routine broadcasts.
	Lost and Found	Broadcasts location as a message to the default channel to assist with device recovery.

Choosing the Right Device Role →

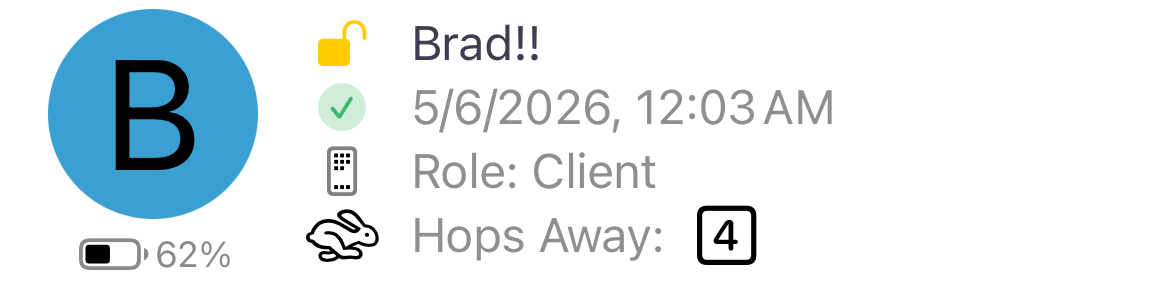

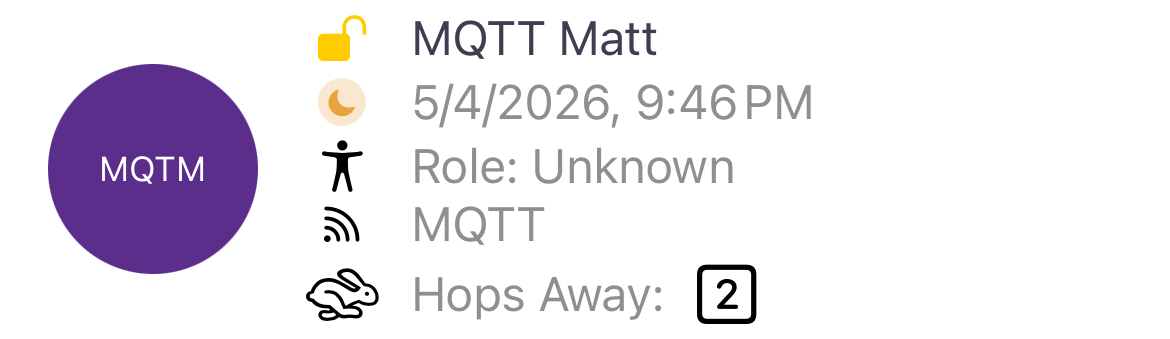

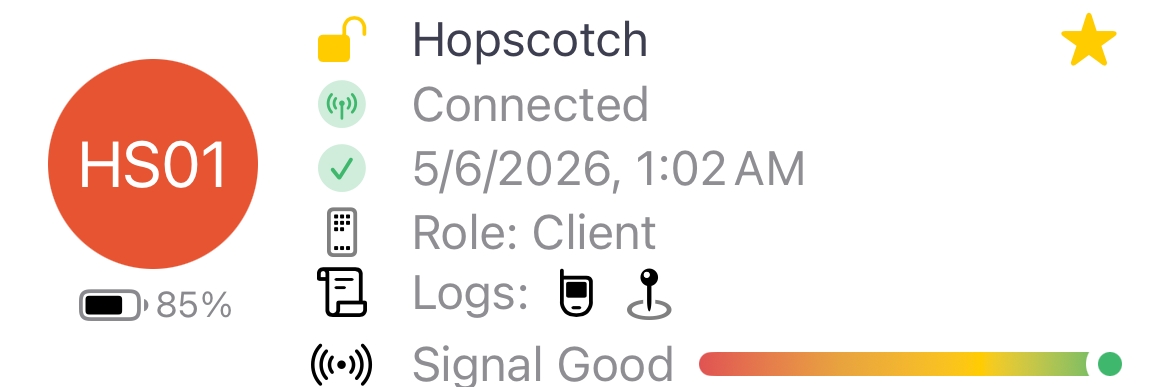

Complete Node Row Examples

The full node row shows the circle avatar, battery level, encryption status, last-heard time, device role, signal strength, and log indicators all at once.

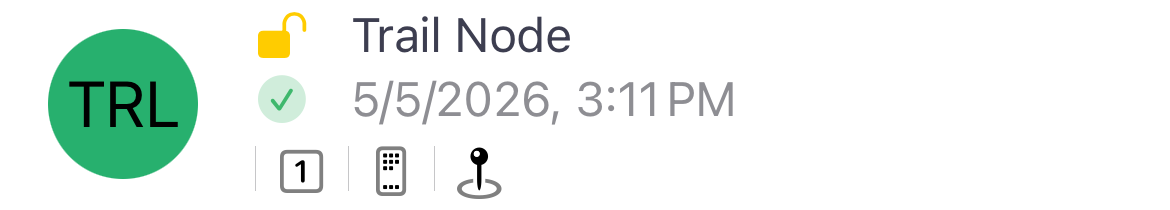

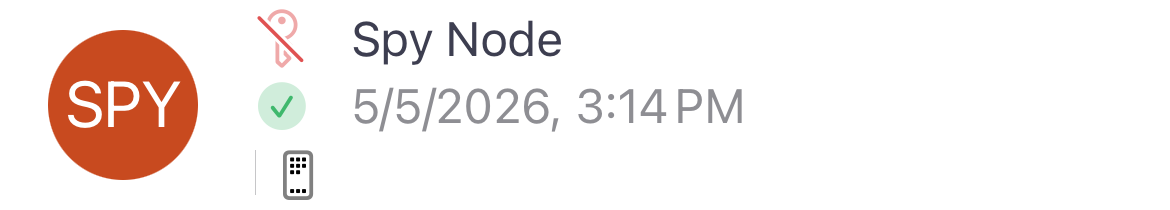

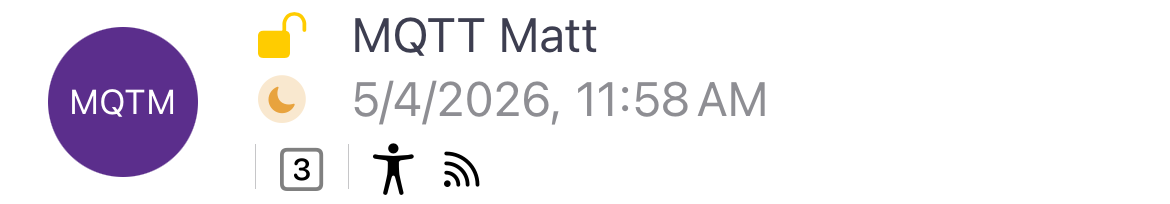

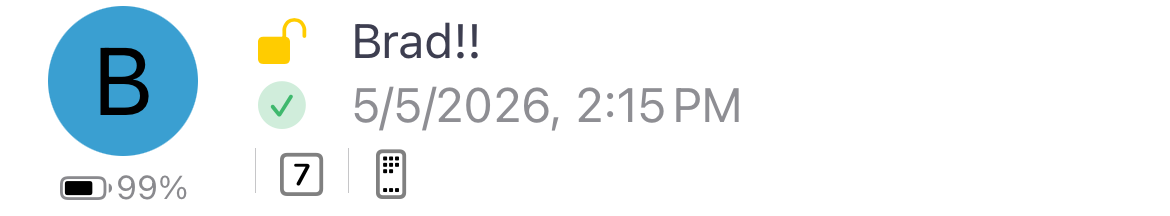

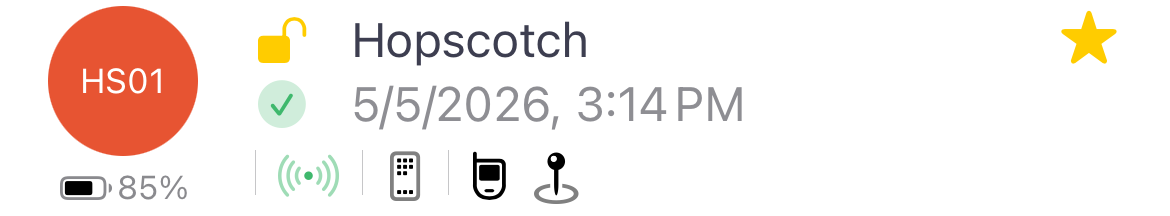

Compact Node Row Examples

Context Menu Actions

Long-press any node in the list to access quick actions:

• Add to favorites / Remove from favorites — star important nodes so they appear at the top of the list
• Display name — give a node a local nickname (see Display Names below)
• Mute notifications / Unmute — silence alerts from this node
• Message — open a direct message conversation with this node
• Trace Route — discover the path messages take to reach this node
• Ignore / Remove from ignored — hide this node from normal views
• Remove — remove the node from your local database

Display Names

You can give any node a local nickname that’s shown throughout the app instead of its device long name — in the node list, node details, and messages. Set it from the node’s long-press menu (“Display name”) or from the Name row in Node Detail. The avatar circle always shows the node’s actual short code, unaffected by the nickname.

Display names are stored only on this device and are never sent over the mesh, shared, or exported — they don’t change the node’s real identity, so QR codes and contact sharing still use the device’s actual name.

Filtering & Search

Tap the filter icon above the list to narrow which nodes are shown. Filters apply across the Nodes list, the contacts picker in Messages, and the map, so a filter set in one place takes effect everywhere.

Filter	What it shows
Online	Only nodes heard in the last two hours.
Favorites	Only nodes you have starred.
Public Key Encryption	Only nodes using PKI-encrypted direct messages.
Environment	Only nodes reporting environment telemetry (temperature, humidity, pressure).
Hops Away	Limit to nodes within a chosen number of hops, including direct (0-hop) only.
Distance	Limit to nodes within a chosen radius of your location. Falls back to the connected device’s last position when phone location is unavailable.
Roles	Show only the device roles you select.
Connection	Show nodes reachable via LoRa, via MQTT, or both. At least one is always kept on.

Filters are remembered between launches — the app reopens with the same filters applied. Search text is the exception: it is intentionally cleared on relaunch so you never reopen into a stale search that hides most of your nodes. Use the reset affordance to clear every filter and the search text at once.

The map has one additional filter of its own — Precise Locations Only, which hides nodes reporting an approximate (reduced-precision) location. See Map & Waypoints for details.

Additional Icons

Tap a node and scroll to the Logs section for detailed metrics:

Log	Description
	Direction and distance to the node based on GPS. Requires both devices to share location.
	The numbered circle shows which channel the node uses. Only shown for secondary channels (not primary channel 0).
	Battery level, voltage, channel utilisation, and airtime reported by the node.
	GPS position data including latitude, longitude, and altitude.
	Sensor data: temperature, humidity, barometric pressure.
	Motion or door open/close alerts from the node.
	Recorded trace route paths showing the hops a message took through the mesh.

Local Stats and Noise Floor

Local Stats show radio diagnostics reported by a node, including packets received, packets transmitted, duplicate packets, relayed packets, bad receives, canceled packets, online node count, total node count, and noise floor.

Noise floor is displayed in dBm when the node reports it. Treat it as a directional diagnostic instead of an absolute site score: readings can vary quickly, and external filters can lower or skew the displayed value because of insertion loss or in-band interference.

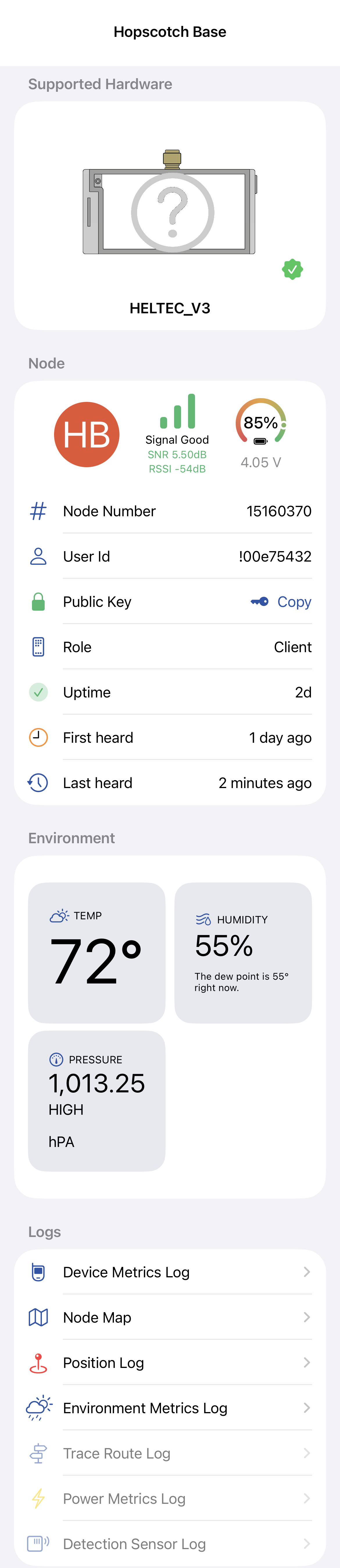

Node Detail View

Tap any node to see the full detail view with hardware info, signal metrics, environment sensors, and log navigation:

Signed Node

If a node signs its broadcast packets, a green shield (🛡️) Signed node row appears in the detail view, marked Verified automatically. This means the radio has cryptographically verified an XEdDSA signature from this node (firmware 2.8 or later). Because a node’s identity broadcast is itself signed, its name and identity are verified by extension.

This is automatic trust observed from the radio — distinct from manually verifying a contact’s public key out-of-band, which is a separate, user-asserted action. The row only ever affirms the good state; nodes that don’t sign simply show no shield, which is not a warning.

Hardware Info

The hardware section shows information about the physical device running the node. The section title reflects the device’s support status:

Status	Meaning
Supported Hardware	Device is actively supported with firmware updates.
Discontinued Hardware	Device is no longer supported and does not receive firmware updates.

For supported devices, the support tier is shown below the hardware name:

Tier	Description
Flagship	Recommended device with full feature support and active development.
Niche	Supported device with active firmware updates and a specialised form factor.
Legacy	Older device that still receives firmware updates but may lack some features.

Where to Buy

For devices with known purchase links, an I want one section appears below the hardware info. It shows the official vendor link and regional marketplace options (Amazon, Rokland, AliExpress, and others) sourced from msh.to.

Marketplace links are filtered to your device region, so only stores that ship to your area are shown. Vendor links (directly from the device manufacturer) are always shown regardless of region.

Tip — No purchase links shown Purchase links require an internet connection on first launch and after clearing app data. Connect the app to update the device catalog.

Device Configuration Docs →
